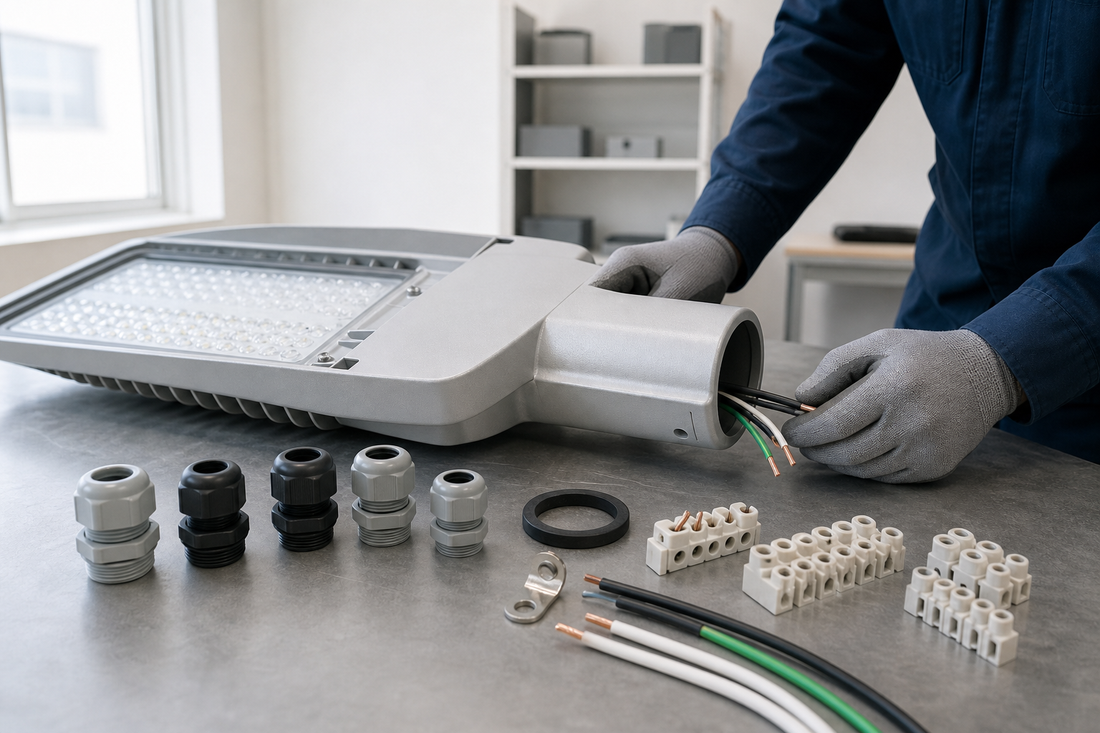

Street Light Cable Entry and Wiring Connections: A Buyer Review Checklist
Share
Street light cable entry should be checked before purchase because the entry point, gland, terminal space, grounding route, and installation instructions determine whether a luminaire can be wired correctly on site. Buyers should request exact-model evidence instead of assuming that a catalog listing proves cable fit, sealing, polarity marking, or installation compatibility.
Quick Facts
- Procurement focus: confirm cable entry dimensions, gland type, conductor range, terminal layout, grounding path, and torque instructions before ordering.
- Catalog context: CHZM currently has LED Street Light and Outdoor lighting collections.
- Listed pages: the catalog includes pages titled Adjustable LED Street Light for Outdoor Roads, Long-Lasting LED Street Light, and LED Street Light Outdoor Road Lighting.
- Evidence limit: a listing title proves that a page exists. It does not prove a cable gland, conductor range, terminal layout, sealing result, certification, warranty, stock status, or installation fit.
- Buyer action: request exact-model wiring diagrams, entry dimensions, conductor range, sealing method, torque values, grounding path, and configuration-specific documents.
Why Cable Entry Belongs in Street Light Procurement
Street lighting procurement often begins with wattage, optical distribution, mounting style, and unit price. Those items matter, but they do not answer a practical site question: can the contractor bring the specified supply cable into the luminaire, terminate it correctly, seal the entry, and close the housing without strain or improvisation? That question sits at the center of street light cable entry review.
For distributors and contractors, cable entry is a risk point because it connects product selection with installation conditions. A luminaire body may appear suitable for road lighting, yet the actual entry hole, gland thread, terminal capacity, strain relief, and available wiring space may not match the project cable or local installation practice. If this is discovered after delivery, the buyer may face rework, schedule pressure, or requests for field modifications that were not part of the original product evidence.
For project buyers and lighting procurement teams, the same issue affects bid comparison. Two road luminaires can look similar in a spreadsheet while requiring different wiring labor, different glands, different tools, or different documentation. A clear LED street light wiring connection review makes quotations easier to compare because it asks each supplier for the same physical and documentary evidence.
CHZM's current store structure can help buyers begin product navigation. The Adjustable LED Street Light for Outdoor Roads page, for example, is a product page that can be used as a starting point for exact-model questions. The page title alone should not be treated as proof that a particular cable, pole arrangement, terminal, surge route, ingress protection condition after installation, or market document applies to a specific order.
A disciplined luminaire cable gland review also protects the supplier relationship. Instead of asking a broad question such as whether a fixture is suitable for a project, buyers can ask for defined evidence: entry drawing, gland specification, conductor range, terminal diagram, torque values, grounding method, and current documents for the selected configuration. That creates a cleaner technical conversation and reduces ambiguity before purchase orders are issued.
Map the Entry, Conductors, and Terminal Geometry
The first review step is to map the physical path from the external cable to the internal terminal. A buyer should identify where the cable enters the housing, what opening or threaded interface is used, which gland or sealing component is supplied or required, and whether the cable bends naturally into the wiring compartment. The goal is not to redesign the luminaire; it is to confirm that the purchased configuration has a documented and installable path.
Ask for an exact-model drawing or photo set that shows the entry location in relation to the mounting arm, housing cover, driver compartment, terminal block, and grounding point. If the project uses prewired poles, arm-mounted luminaires, or maintenance teams with defined access procedures, the entry orientation can affect installation time and serviceability. The drawing should be for the model and configuration being quoted, not a generic family image.
Conductor range is another basic control point. Buyers should request the terminal's accepted conductor type and size, including whether the connection is intended for solid, stranded, or ferruled conductors. If ferrules are required or recommended by the terminal supplier, that belongs in the installation evidence. Do not infer conductor range from fixture power rating, cable diameter, or the appearance of the terminal in a photo.
Terminal geometry matters because street light bodies can have compact driver compartments. A road lighting terminal checklist should ask whether there is enough space to strip, insert, tighten, and inspect each conductor without sharp bending or pressure against the cover. The review should include line, neutral, protective earth, dimming, surge protective device, and control conductors if they are part of the selected configuration. Where polarity marking, color coding, or labels are visible, buyers should still request the official wiring diagram for the exact model.
| Review Item | Evidence to Request | Reason for Procurement Review |
|---|---|---|
| Cable entry opening | Exact-model drawing with entry dimension, thread or hole detail, and location | Confirms whether the entry design can be compared with the project cable plan |
| Gland or sealing part | Part specification, cable diameter range, sealing method, and installation instruction | Prevents assumptions about supplied accessories and weather sealing after installation |
| Terminal block | Conductor range, conductor type, strip length, torque value, and diagram | Supports correct LED street light wiring connection work on site |
| Grounding path | Protective earth terminal location and grounding route drawing | Shows how the protective conductor is intended to be connected for the quoted configuration |
| Control wiring | Diagram for dimming, sensor, surge, or control options, if selected | Avoids mixing documents from different configurations |
If a numeric teaching example is needed during internal review, label it clearly. For example, assume a hypothetical project cable has a 10 mm outside diameter and a hypothetical gland states a 7 mm to 12 mm cable range. This is only an illustration of how to compare documents; it is not a CHZM product claim and does not prove any listed luminaire fits that cable.
Review Sealing, Grounding, Torque, and Installation Evidence
Once the entry and terminal path are mapped, review the controls that make the connection repeatable. A cable gland is not only a hole cover. It may provide strain relief, compression around the jacket, and a barrier against water or dust when installed according to its instructions. A luminaire cable gland review should therefore ask what component is used, whether it is supplied with the product or specified separately, and how the installer is instructed to tighten it.
Do not treat a product family claim, listing title, or housing photo as evidence that ingress protection remains valid after field wiring. The buyer should request the installation method for the exact model and configuration, including gasket placement, gland tightening sequence, cable jacket requirements, unused port closure, and any limits on cable shape or diameter. If ingress protection or other ratings are discussed, request current exact-model and configuration evidence and verify the applicable market, document scope, issuer or lab, issue date, and configuration covered.
Grounding deserves the same discipline. The procurement file should show where the protective earth conductor terminates, whether the driver compartment has a marked grounding point, and how continuity is intended to be maintained through covers, brackets, or metal housing parts if applicable. Buyers should not infer grounding from metal construction, wire color seen in a photo, or general statements about outdoor lighting.
Torque is often omitted from early quotations, yet it is one of the practical details that separates a usable installation packet from a vague one. Request terminal torque values, gland torque values if specified, cover screw tightening instructions where relevant, and the tool type needed. If a supplier cannot provide torque data directly, ask whether the terminal or gland manufacturer's instruction is available for the exact component used in the quoted configuration.
CHZM's Quality page can be used as a starting point for understanding how the supplier presents quality-related information. It should not replace the buyer's request for current, exact-model documents. Procurement teams should keep the evidence chain attached to the quotation or submittal so that the product page, model identifier, configuration, wiring diagram, and installation instruction all point to the same item.
Street Light Wiring Connection Checklist
Use the following checklist when reviewing a street light cable entry before purchase. It is written for quotation comparison, submittal review, and contractor handoff. Mark each item as received, not applicable, or unresolved, and keep unresolved items out of the approval column until the supplier provides configuration-specific evidence.
- Identify the exact model and configuration. Record product name, model code if provided, wattage or option set if relevant, mounting version, control option, surge option, and any accessories included in the quotation.
- Request the wiring diagram. Confirm line, neutral, protective earth, dimming, sensor, and surge protective device connections for the selected configuration. Do not use a diagram from another model unless the supplier confirms its scope in writing.
- Confirm cable entry dimensions. Ask for entry location, hole or thread specification, usable clearance, cover access, and the relationship between cable entry and mounting arm.
- Review the gland or sealing method. Ask whether the gland is supplied, what cable outside diameter range it accepts, what sealing components are used, and how unused entries are closed.
- Check conductor range. Request accepted conductor sizes and types, strip length, ferrule guidance, terminal torque, and any limits for multi-core or single-core cable.
- Confirm grounding path. Ask for the protective earth terminal location, grounding symbol or label, and any bonding route that is relevant to the housing, cover, bracket, or surge device.
- Verify installation instructions. Request the latest instruction sheet for the exact product and configuration, including torque, sealing, access, and inspection steps.
- Review document scope. For any rating, test report, declaration, or certificate, verify market, model, configuration, issuer or lab, issue date, and whether accessories or wiring changes are included.
- Align with the contractor. Compare the supplier evidence with the project cable schedule, site voltage, control scheme, installation tools, and maintenance access plan before order release.
A practical procurement file can be simple: quotation, product page reference, exact-model drawing, wiring diagram, gland specification, installation instruction, and current market documents where applicable. The file should make clear what is proven, what is assumed, and what still needs confirmation. That is more useful than a broad claim that a luminaire is suitable for road lighting.
For CHZM inquiries, buyers can reference the relevant catalog page and send the cable schedule, installation market, control requirements, and document list through contact CHZM Lighting. Ask for exact-model wiring diagrams, entry dimensions, conductor range, sealing method, torque instructions, grounding path, and configuration-specific evidence before treating the item as technically reviewed.
FAQs
Does a street light product page prove the cable gland size?
No. A product page title proves that the page exists, not that a specific cable gland, thread, cable diameter range, or sealing method applies. Request exact-model entry drawings and gland specifications for the quoted configuration.
What should be checked in an LED street light wiring connection?
Check the wiring diagram, line and neutral identification, protective earth route, terminal conductor range, strip length, torque values, dimming or control wires, surge path, and any required ferrules or accessories. The diagram should match the purchased configuration.
Can buyers rely on a general ingress protection statement?
No. If ingress protection is relevant, request current exact-model and configuration evidence, then verify the document scope, market, issuer or lab, issue date, and installation conditions. Field wiring and gland installation can affect the final result.
How should compliance documents be reviewed?
Do not assume compliance from catalog wording. Request the current document for the exact model and configuration, then verify applicable market, covered standard or requirement, issuer or lab, issue date, model scope, and whether options or accessories are included.
When should cable entry be reviewed in the buying process?
Review it before purchase order release, ideally during quotation comparison or submittal review. That timing gives the supplier and contractor time to resolve entry, terminal, grounding, and sealing questions before materials reach the site.
