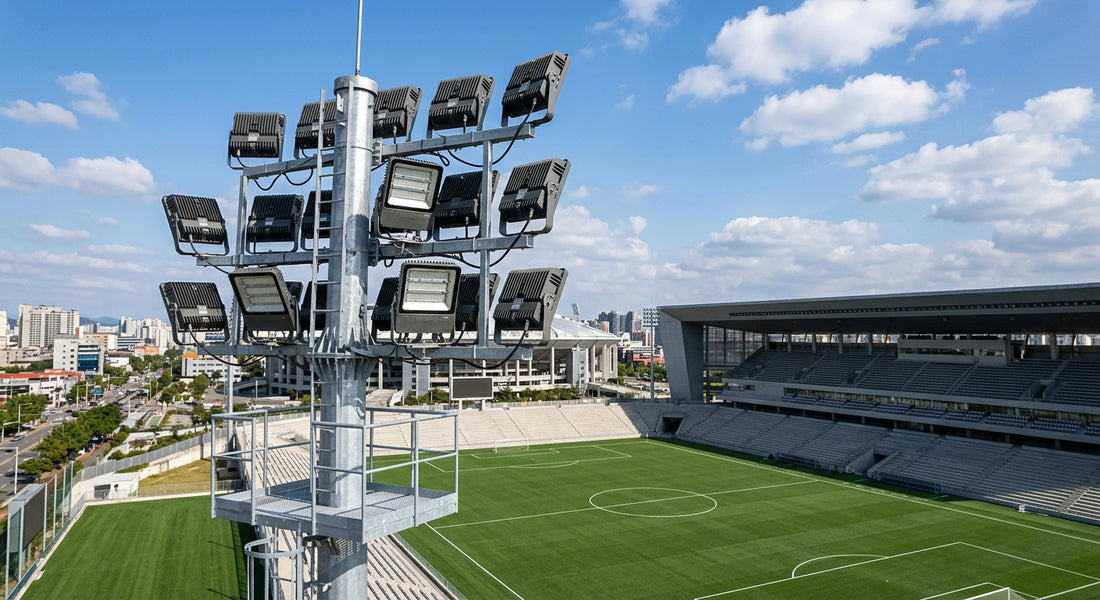

Stadium Lighting Installation & Application: 500W IP66 Guide
Procurement officers, lighting contractors, and project developers across the Middle East, Africa, Southeast Asia, and South America consistently face overlapping operational pressures. High energy expenditures, frequent fixture degradation in harsh climates, and confusing import certification requirements routinely complicate large-scale infrastructure projects. To resolve these pain points, upgrading outdated metal halide systems to modern solid-state technology is mandatory. Specifically, mastering the complexities of a 500w stadium lighting installation is critical to achieving long-term reliability, adhering to strict municipal budgets, and ensuring total regulatory compliance.
Whether outfitting a professional football pitch, a municipal cricket ground, or a sprawling industrial construction site, transitioning to a high-efficiency LED Flood Light ensures that your project remains under budget while delivering superior photometric performance. In this comprehensive technical guide, CHZM Lighting leverages over 35 years of manufacturing expertise to walk B2B buyers through the specifications, environmental protections, and execution strategies required for a flawless 500w stadium lighting installation.
Why the 500W LED Floodlight Dominates Large-Scale Projects
The shift from traditional high-intensity discharge (HID) lamps to solid-state lighting is driven by undeniable improvements in luminous efficacy and thermal management. For high-mast applications, the 500W LED floodlight represents the optimal balance of weight, windage area, and raw lumen output.
Producing between 140 to 160 lumens per watt (lm/W), a premium 500W fixture can generate up to 80,000 total lumens. This high efficacy means a single 500W LED unit can directly replace a 1000W to 1500W High-Pressure Sodium (HPS) or Metal Halide lamp. According to data published by the U.S. DOE LED Lighting Facts, transitioning to high-efficacy LED solutions significantly lowers lifecycle energy consumption and drastically reduces the carbon footprint of municipal facilities.
When planning a 500w stadium lighting installation, project managers must also consider driver efficiency and color rendering. A high-quality constant current driver ensures an efficiency rate exceeding 93% and a Power Factor (PF) greater than 0.95. Furthermore, achieving a Color Rendering Index (CRI) of Ra > 80 and a Correlated Color Temperature (CCT) of 5700K ensures that the lighting meets the stringent requirements for high-definition television broadcasting.
Key Technical Specifications for 500w Stadium Lighting Installation
Executing a successful 500w stadium lighting installation requires matching the internal specifications of the fixture with the external stressors of the installation site.
Optical Precision: The 15° Narrow Beam Angle
High-mast lighting, typically mounted at heights of 25 to 40 meters, requires tightly controlled optics to push light down to the playing surface without causing excessive light spill or sky glow. Utilizing a 15° narrow beam angle is critical for these high-altitude placements. The concentrated optics ensure that the maximum amount of light reaches the target area, providing high center-beam candlepower. For multi-purpose facilities, manufacturers offer a range of optics; while the 15° narrow beam angle is ideal for high masts, wider distributions (such as 60° or 120°) are available in 50W-500W configurations for lower mounting heights, perimeter security lighting, or indoor arenas.
Durability: IP66 Waterproof Rating and Heat Dissipation
Environmental durability is a non-negotiable factor for international buyers. Stadiums in the Middle East endure abrasive sandstorms and extreme heat, while facilities in Southeast Asia and South America face torrential monsoons and high humidity. A certified IP66 waterproof rating guarantees that the fixture is completely dust-tight and highly protected against powerful water jets from any direction.
Beyond moisture ingress, the housing must comply with the IEC 60598 Luminaire Safety Standard, which governs the electrical and thermal safety of the luminaire. Cold-forged or die-cast aluminum heat sinks provide the necessary thermal dissipation to protect the LED chips, ensuring the fixture easily achieves its promised 50,000hr lifespan even in ambient temperatures exceeding 45°C.
Performance Comparison: Traditional HID vs. LED
| Specification Metric | Traditional 1500W Metal Halide | Modern 500W LED Floodlight |
|---|---|---|
| System Power Draw | 1650W (including ballast loss) | 500W (integrated driver) |
| Luminous Efficacy | 70 - 85 lm/W | 140 - 160 lm/W |
| Ingress Protection | Typically IP54 to IP65 | Strict IP66 waterproof rating |
| Operational Life | 10,000 - 15,000 hours | 50,000hr lifespan |
| Optical Control | Limited reflector dependency | Precision 15° narrow beam angle to 120° |
Mini Case Study: Football Stadium Upgrade in Southeast Asia
Region: Kuala Lumpur, Malaysia
Problem: A regional municipal football stadium was struggling with skyrocketing maintenance costs and poor visibility. Their existing 1000W metal halide fixtures were failing rapidly due to coastal humidity and heavy seasonal rains. Furthermore, the high energy draw was straining the city's operational budget, and the lighting uniformity failed to meet local broadcast requirements.
Solution: The municipality commissioned a complete 500w stadium lighting installation. The project utilized 96 units of marine-grade, 500W LED floodlights featuring an IP66 waterproof rating and specialized anti-corrosion powder coating. To push light effectively from the 30-meter masts, the engineering team specified a 15° narrow beam angle.
Outcome: The new 500w stadium lighting installation achieved an average horizontal illuminance of 600 lux, fully compliant with Class II international requirements. Energy consumption plummeted by 64%, saving the municipality tens of thousands of dollars annually. With the new 50,000hr lifespan, the city effectively eliminated its lighting maintenance budget for the next decade.
Engineering Callout: Upgrading a high-mast facility? A standard 500W LED floodlight replacing a 1500W Metal Halide lamp instantly reduces energy consumption by over 66%. Over a standard 12-hour daily operation cycle, this single-fixture upgrade saves approximately 4,380 kWh per year, yielding a rapid Return on Investment (ROI) typically under 24 months.
Step-by-Step 500w Stadium Lighting Installation Guidelines
For lighting contractors, adhering to technical best practices during a 500w stadium lighting installation is paramount for structural safety and optimal photometric performance.
- Structural Load Verification: Before mounting, verify the wind load capacity of the high mast. A 500W LED floodlight has specific weight and windage area parameters. Ensure the widened and thickened adjustable metal brackets are secured with high-tensile stainless steel bolts (SUS304 or SUS316) to withstand cyclonic wind speeds.
- Electrical Integration and Surge Protection: High-mast environments are highly susceptible to lightning strikes and grid fluctuations. A professional 500w stadium lighting installation must include external 10kV or 20kV Surge Protection Devices (SPDs). When wiring, connect the brown cable to the live wire, blue to neutral, and yellow/green to earth. All connections must be housed in IP68-rated junction boxes to maintain the integrity of the IP66 waterproof rating.
- Precision Aiming: Hitting the precise photometric targets required by international stadium lighting standards requires meticulous aiming. Contractors should utilize laser aiming sights attached to the fixture chassis. When utilizing a 15° narrow beam angle, even a one-degree deviation at the mounting bracket can result in a massive dark spot on the pitch.
Engineering Callout: Always implement dual-axis aiming. Adjust the horizontal yaw and vertical pitch independently. Lock the yaw mechanism first to establish the baseline orientation, then fine-tune the pitch to eliminate glare and maximize the uniformity ratio (U0 > 0.6) across the playing surface.
Navigating Certifications and Total Cost of Ownership (TCO)
For B2B procurement officers, minimizing the Total Cost of Ownership (TCO) is the ultimate metric of success. The initial Capital Expenditure (CAPEX) of a 500w stadium lighting installation is quickly offset by the drastic reduction in Operating Expenses (OPEX). By eliminating routine bulb replacements and cutting energy bills by more than half, the 50,000hr lifespan guarantees excellent financial performance.
However, international trade requires strict adherence to regional certifications. Importing fixtures into the Middle East may require SABER certification, while South American markets often demand specific CB test reports. Ensure your manufacturer provides full CE, RoHS, and IEC documentation to prevent costly customs delays.
Furthermore, project specifications must align with strict IES (Illuminating Engineering Society) Standards, which dictate the exact horizontal illuminance, vertical illuminance, and Glare Rating (GR) limits for safe athletic play. Standardizing your procurement process with a proven manufacturer simplifies this compliance. Procurement officers, municipal planners, and wholesale distributors are encouraged to explore our full LED lighting catalog to view comprehensive technical specifications, IES files, and robust solutions ranging from 50W to 500W.
FAQ on 500w Stadium Lighting Installation
Q1: How many fixtures are required for a standard football pitch 500w stadium lighting installation?
The exact quantity depends entirely on the required lux levels and the mast height. For a basic training facility requiring 200 lux, you may only need 40 fixtures. However, a Class II competition stadium requiring 500+ lux might necessitate 80 to 100 units of 500W LED floodlights. Professional photometric simulation (using software like DIALux) is mandatory to determine the precise quantity, mast positioning, and whether a 15° narrow beam angle or a wider optic is necessary to meet exact stadium lighting standards.
Q2: Does an IP66 waterproof rating guarantee the fixture will survive severe coastal environments?
An IP66 waterproof rating ensures the internal electronics are fully protected against dust ingress and powerful water jets, which is critical for outdoor sports facilities. However, for coastal environments subjected to high salt spray, the IP rating alone is not enough. The fixture must also feature anti-corrosion treatments, such as marine-grade electrophoretic paint and stainless steel hardware, to protect the aluminum housing from rusting and to safeguard the 50,000hr lifespan.
Q3: Can a 500w stadium lighting installation integrate with smart dimming controls?
Absolutely. Modern 500W LED floodlights can be equipped with advanced drivers supporting DALI, 0-10V, or DMX dimming protocols. Integrating smart controls into your 500w stadium lighting installation allows facility managers to dynamically adjust lighting levels based on the event—dimming the lights to 30% for routine maintenance or ramping up to 100% for televised matches. This flexibility further reduces energy consumption and extends the thermal longevity of the diodes.
Q4: What is the recommended maintenance schedule following a 500w stadium lighting installation?
Because high-quality solid-state lighting boasts a 50,000hr lifespan, the need for traditional, costly bulb and ballast replacements is completely eliminated. Maintenance for a modern 500w stadium lighting installation shifts primarily to annual visual inspections. Technicians should verify the structural integrity of the mounting brackets, ensure the surge protectors are still functional, check that the IP68 junction boxes remain sealed, and clean the glass lenses to maintain maximum light output and optical precision.
Careful planning, rigorous standard compliance, and premium component selection are the cornerstones of high-performance sports illumination. By thoroughly understanding the optics, environmental protections, and electrical demands detailed above, B2B buyers can confidently execute a 500w stadium lighting installation that delivers maximum visibility, unparalleled safety, and exceptional long-term value for any global infrastructure project.
