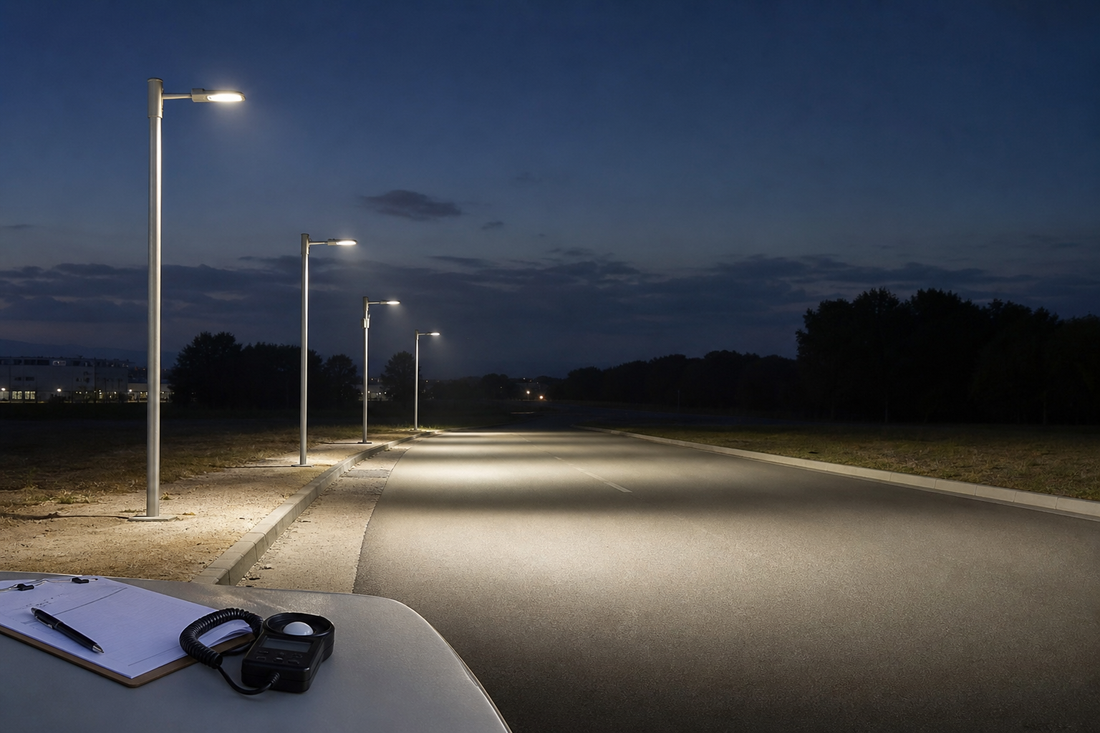

Road lighting distribution types describe how a luminaire sends light along and across a roadway. For procurement, the distribution type is not a decoration on a datasheet; it affects pole spacing, glare control, uniformity, sidewalk spill, and whether a selected LED street light beam pattern fits the project geometry.
Quick Facts
- Distribution type is layout-dependent: A fixture that works on a narrow local road may be unsuitable for a wide arterial, median mount, or offset pole line.
- Photometry is configuration-specific: Buyers should request the current IES or LDT file for the exact wattage, optic, CCT, mounting option, and control configuration under consideration.
- Mounting geometry changes outcomes: Pole height, arm length, tilt, setback, lane width, and spacing can change illuminance, luminance, glare, and uniformity.
- Catalog pages are a starting point: CHZM currently lists LED Street Light and LED Solar Street Light collections, but the buyer must verify the exact submittal for the chosen configuration.
- Compliance is evidence-based: Do not rely on product names alone. Verify market, document scope, issuer or lab, issue date, model number, and configuration before approval.
What Road Lighting Distribution Describes
In road lighting procurement, distribution describes the three-dimensional pattern of light leaving the luminaire. It is commonly shown through a photometric file, polar candela plot, iso-illuminance diagram, or lighting calculation report. The buyer is trying to answer a practical question: does this luminaire put enough light where the project needs it, while limiting light where the project does not need it?
The phrase road lighting distribution types is often used alongside terms such as Type I, Type II, Type III, Type IV, and Type V. These labels are useful, but they are not a substitute for a project calculation. A distribution type gives a broad idea of the beam spread relative to the road and mounting position. The actual result depends on the luminaire optic, mounting height, tilt, road width, pole spacing, and the target criteria set by the authority or project owner.
For roadway use, the most common procurement discussion is whether the beam should send light mainly along the road, across the road, or in a more symmetrical pattern. A narrow distribution may help long spacing on a path or narrow road. A wider forward-throw distribution may suit a pole line placed at one side of a carriageway. A symmetric pattern may be used in certain open areas, intersections, or non-roadway zones, but it is not automatically the best choice for traffic lanes.
For technical buyers, the important point is that the distribution label should connect to a current photometric file. The file should identify the tested or calculated configuration clearly enough to match the product being quoted. Product titles and catalog presence do not prove a specific distribution type, efficacy, lifetime, warranty, rating, certification, control protocol, current availability, MOQ, lead time, or production capacity. Those items require current documents for the selected configuration.
CHZM's current Shopify catalog includes a 200W Adjustable LED Street Light for Outdoor Roads product page and a 200W Smart LED Street Light with Motion Sensor product page. These page titles show that the listings exist. They should not be interpreted as proof of a particular street light photometric distribution, control protocol, sensor function for a specific market, rating, certification, or stock status. For procurement decisions, request the exact current submittal package.
How Mounting Geometry Changes the Result
A street light photometric distribution only becomes meaningful when it is placed into a road layout. The same luminaire can produce different results if it is mounted higher, tilted upward, set farther back from the curb, or moved from one side of the road to the median. This is why lighting calculations are often required before a project buyer approves a fixture schedule.
The most important geometry inputs are mounting height, pole spacing, road width, number of lanes, overhang, arm length, setback from the roadway edge, luminaire tilt, and arrangement. Arrangement may be single-sided, staggered, opposite, median-mounted, or central. Each arrangement changes the relationship between the LED street light beam pattern and the target area.
Consider a teaching example, not a product claim: if all numbers are hypothetical assumptions, a project may test a mounting height of 10 m, pole spacing of 35 m, one-sided mounting, and a 7 m roadway. The spacing-to-height ratio would be 35 m divided by 10 m, or 3.5. That ratio alone does not approve the design, but it helps procurement teams compare layouts before commissioning a full calculation.
Teaching formula using hypothetical assumptions only: spacing-to-height ratio = pole spacing divided by mounting height. This formula is not a CHZM product performance claim and does not replace a lighting design.
Mounting tilt deserves special attention. A small tilt change may increase forward throw, but it can also raise glare, uplight, or light trespass. Adjustable housings or brackets can be useful only if the final angle is documented and the calculation reflects that installed condition. For road lighting procurement, a buyer should avoid approving a fixture based on a photometric file created at one tilt if the field installation will use another tilt.
Road surfaces also matter. Luminance-based design considers how the road surface reflects light toward the driver's eye. Illuminance-based design focuses on light arriving at the pavement plane. Different jurisdictions and project types may use different criteria. The buyer should identify which method applies and request files that support that calculation method without assuming equivalence.
How to Match Photometry to the Project Layout
Start with the project layout, not the wattage. Wattage is an electrical input category, while distribution is an optical output question. Two luminaires with the same wattage can produce different beam shapes, cutoff behavior, glare values, and usable light on the pavement. Conversely, two different wattages may both be inappropriate if the optic does not match the road geometry.
A practical procurement workflow begins with the road classification and target criteria. Identify lane width, sidewalks, cycle lanes, medians, intersections, pedestrian crossings, and neighboring properties. Then define the mounting arrangement that is actually buildable: available pole locations, utility conflicts, wind-load constraints, bracket type, and maintenance access. Only after these items are known should the buyer shortlist candidate luminaires and optics.
| Project Condition | Photometry Question | Procurement Evidence to Request |
|---|---|---|
| Narrow road or pathway | Does the beam spread too far beyond the target area? | IES or LDT file, iso-illuminance plot, and calculation for the stated mounting height |
| Wide roadway with side mounting | Does the optic provide enough forward and transverse throw without excessive glare? | Layout calculation showing average level, uniformity, and glare-related criteria where applicable |
| Staggered or opposite pole layout | Does the distribution overlap correctly between pole lines? | Calculation using the actual pole arrangement and spacing |
| Intersection or open area | Is a roadway optic or a more symmetric pattern appropriate? | Photometric comparison for the intersection geometry, not only a roadway segment |
| Solar street light project | Does the optical plan align with energy storage and control assumptions? | Exact luminaire, battery, panel, control, and photometry submittals for the selected configuration |
When reviewing a lighting calculation, check whether it uses maintained values or initial values. Maintained results account for light loss factors selected by the designer or authority. Procurement teams should not assume the light loss factor from one project is valid for another. Ask who selected it, what assumptions are included, and whether the same value is required by the project owner.
Also check calculation grids. A report may look acceptable if the grid avoids difficult zones, such as curb lines, pedestrian crossings, conflict areas, or transition zones. For B2B purchasing, the calculation should match the tender drawings and approval criteria. If the road has unusual geometry, request a project-specific calculation instead of relying on a generic catalog plot.
For international projects, document terminology may differ. A buyer may see IES files, LDT files, TM-style reports, EN-based criteria, local municipal forms, or supplier submittal sheets. The naming format is less important than traceability. The file must connect to the quoted model and configuration, and the approval package should make clear what is being supplied.
Road Lighting Submittal Checklist
A disciplined submittal process reduces disputes after purchase. It also helps distributors and contractors compare alternatives without treating wattage, lumen output, or product title as the only decision factor. The checklist below is intended for road lighting procurement teams reviewing LED roadway luminaires, including standard grid-powered and solar-related projects.
- Exact model and configuration: Confirm model number, wattage, optic, CCT, CRI if required, finish, mounting accessory, surge option if specified, control option, and any sensor or dimming configuration.
- Photometric file: Request the current IES or LDT file for the exact configuration. Confirm whether it is laboratory measured, calculated, or derived, and ensure the file name and report identify the same configuration being quoted.
- Lighting calculation: Require a calculation using project drawings, mounting height, pole spacing, setback, arm length, tilt, road width, and target criteria. Do not approve a generic example as a substitute for the project layout.
- Electrical and mechanical data: Request input voltage range, power, dimensions, weight, mounting method, wind-related documentation if required, and installation limitations. Verify these details against the project specification.
- Controls and sensors: If a control feature is specified, request configuration-specific documentation. A product page title containing smart or motion sensor wording does not prove the protocol, settings, interoperability, or approval status for a selected project.
- Compliance evidence: When certifications or regulatory approvals are required, request current exact-model evidence and verify the applicable market, document scope, issuer or lab, issue date, and configuration. Do not treat catalog text as compliance proof.
- Commercial assumptions: Separately confirm current availability, MOQ, lead time, packaging, warranty terms, and after-sales process. These items can change and should not be inferred from catalog presence.
For CHZM sourcing discussions, the public catalog can help identify the relevant starting category, such as LED street lights or solar street lights, but procurement approval should be based on the current exact submittal. If you are comparing distribution options for a tender or project bill of quantities, send the road layout, mounting assumptions, and required documents through CHZM's contact page so the requested evidence can be matched to the selected configuration.
FAQs
Are Type II, Type III, and Type IV road lighting distributions interchangeable?
No. The labels indicate different general beam behaviors, but interchangeability depends on the road width, pole position, mounting height, spacing, tilt, and project criteria. A lighting calculation is needed before substitution.
Can I select a street light only by wattage?
No. Wattage does not define the LED street light beam pattern, optical efficiency, glare behavior, or distribution. Procurement teams should evaluate photometry, layout calculations, electrical data, mechanical fit, and required evidence.
Does a product page prove the photometric distribution type?
No. A product title or catalog page proves only that the listing exists. It does not prove the distribution type, photometric file, certification, warranty, control protocol, availability, MOQ, lead time, or production capacity.
What should a buyer check before accepting a compliance document?
Check the applicable market, issuer or lab, document scope, issue date, model number, configuration, and whether the document covers the exact item being purchased. Never assume one configuration covers another.
Do solar street lights require a different photometric review?
The optical review is still project-specific, but solar projects add energy and control assumptions. Buyers should review the exact luminaire photometry together with the selected panel, battery, controller, dimming schedule, and site conditions.
