LED Wattage Replacement Guide: ROI Analysis for Warehouses

Facility managers, lighting contractors, and municipal procurement officers in the Middle East, Africa, Southeast Asia, and South America face persistent challenges with legacy industrial lighting. High electricity tariffs, frequent ballast failures, and intense heat generation from traditional Metal Halide (MH) and High-Pressure Sodium (HPS) fixtures severely impact operational budgets. Navigating the transition to modern solid-state lighting requires a structured approach to Total Cost of Ownership (TCO) and strict compliance with international standards.

This comprehensive LED wattage replacement guide provides the engineering framework necessary to execute high-ROI industrial retrofits. By upgrading outdated 400W metal halide fixtures to an optimized LED High Bay Light, commercial facilities can reduce energy consumption by up to 67% while simultaneously eliminating routine maintenance cycles.

Why Procurement Officers Rely on an LED Wattage Replacement Guide

Replacing industrial warehouse lighting is a capital-intensive decision. Without an accurate LED wattage replacement guide, project developers risk over-illuminating a facility—wasting critical energy—or under-illuminating it, which violates strict industrial safety protocols. According to the OSHA Lighting Requirements for Workplaces, specific foot-candle minimums must be maintained for worker safety. Relying on an outdated 1-to-1 wattage match is mathematically flawed and financially detrimental.

A typical 400W metal halide fixture actually consumes closer to 455W when accounting for the magnetic ballast power draw. Furthermore, legacy MH lamps suffer from severe lumen depreciation, losing up to 40% of their initial light output within the first 10,000 hours of operation. Modern industrial LEDs, operating with high-efficiency drivers (operating at >92% electrical efficiency), deliver sustained light output for up to 50,000 hours under the L70 standard. Using a professional LED wattage replacement guide allows contractors to calculate the exact financial payback period by comparing the true system wattage of legacy fixtures against high-efficacy LED alternatives.

The Shift from Wattage to 150 lm/W Efficacy

Wattage measures electrical power consumption, not visible light output. The core metric for modern warehouse retrofits is luminous efficacy. Selecting warehouse fixtures featuring a minimum 150 lm/W efficacy ensures maximum light output (lumens) for every single watt of electricity consumed. The U.S. DOE LED Lighting Facts program emphasizes that high-efficacy solid-state lighting drastically accelerates the ROI timeline for commercial buyers. When a fixture achieves 150 lm/W, a 150W LED generates 22,500 lumens—perfectly matching the usable directional light of a brand-new 400W metal halide lamp, but using a fraction of the utility power.

Technical Specifications Within This LED Wattage Replacement Guide

Understanding the core technical specifications is mandatory when sourcing from a manufacturer for large-scale municipal or commercial B2B projects. This LED wattage replacement guide highlights the non-negotiable engineering specs required for harsh warehouse environments:

• Color Rendering Index (CRI >80): Accurate color representation is critical for warehouse logistics, electrical wiring identification, and strict quality control lines. A CRI >80 ensures that packaging colors and safety warning labels are clearly distinguishable to forklift operators. For exact chromaticity standards, lighting engineers consistently refer to the CIE Color Temperature & CRI Guide.
• Ingress Protection (IP65 rating): Warehouses in regions like the Middle East or Southeast Asia are subjected to heavy airborne dust, high humidity, and occasional water exposure. An IP65 rating guarantees the fixture housing is entirely dust-tight and protected against low-pressure water jets, preventing internal driver corrosion and chip failure.
• Correlated Color Temperature (CCT): Industrial manufacturing spaces generally require 5000K or 5700K (daylight white) color temperatures to maintain worker alertness, reduce eye strain, and replicate natural daylight conditions.
• Certifications (CE/RoHS): For seamless customs clearance and commercial safety compliance, project managers must verify CE/RoHS documentation. This ensures the product meets European safety testing standards and is manufactured free from hazardous heavy metals like lead and mercury.

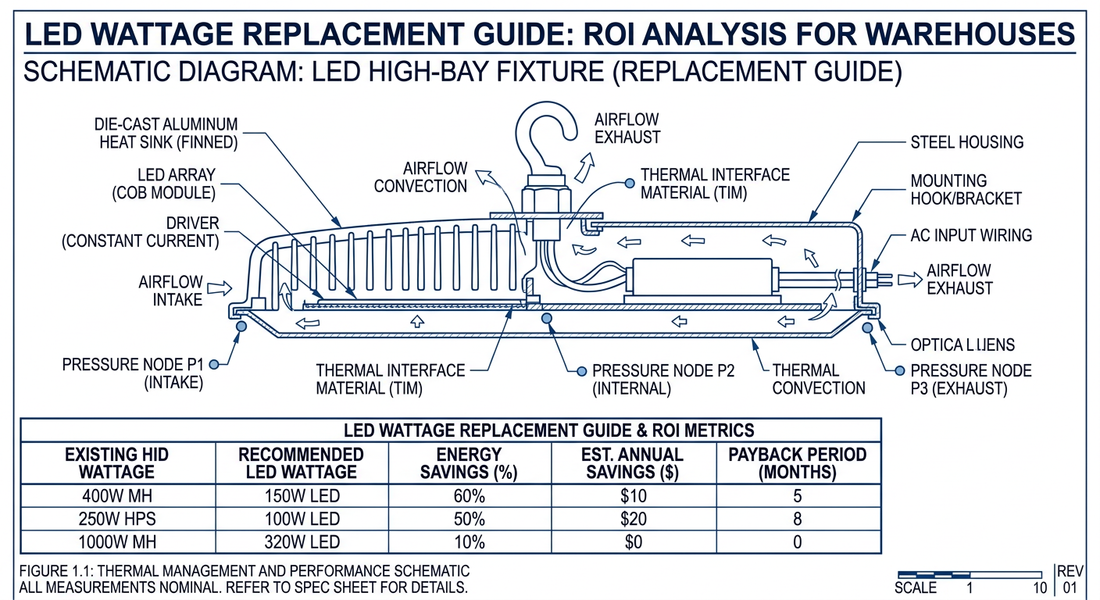

High Bay Wattage Equivalency Matrix

To streamline international procurement, this LED wattage replacement guide provides a direct engineering comparison based on IES (Illuminating Engineering Society) photometric testing standards. The table below illustrates the replacement of legacy HID lighting with modern high-efficacy LED equivalents.

Engineering Callout: A 150W LED high bay replacing a 400W metal halide lamp saves exactly 305 watts per fixture. In a mid-sized logistics facility operating 100 fixtures for 12 hours a day, 300 days a year, this transition eliminates 109,800 kWh of annual energy consumption, yielding a massive reduction in baseline utility expenses.

Real-World Application: LED Wattage Replacement Guide in Action

To clearly illustrate the financial impact of this LED wattage replacement guide, consider a recent industrial logistics facility retrofit completed in Dubai, UAE.

The Procurement Problem: A 10,000-square-meter distribution center was operating 200 obsolete 400W metal halide high bays. The extreme regional ambient temperatures (frequently exceeding 40°C in the summer) caused regular thermal shutdowns of the old magnetic ballasts. The facility faced high commercial electricity tariffs ($0.12/kWh) and spent over $4,500 annually on specialized lift-equipment rentals and labor just to replace failed glass bulbs.

The LED Solution: Following the strict principles outlined in our LED wattage replacement guide, the procurement team specified 150W LED high bays. These units featured high-temperature-rated drivers, a rugged IP65 rating to block abrasive desert sand, and a 120-degree optical beam angle for optimal aisle uniformity without dark spots.

The Financial Outcome: * Annual Energy Savings: Reduced total consumption from 398,580 kWh to 131,400 kWh. * Utility Cost Reduction: Saved $32,061 annually on direct electricity billing. * Maintenance Savings: Reduced maintenance budget to $0 for the first five years of operation. * Payback Period: The total capital expenditure for the fixtures and installation was recovered in just 14 months, achieving an 85% ROI in year two.

Frequently Asked Questions (FAQ) About Our LED Wattage Replacement Guide

Q1: How do I use this LED wattage replacement guide to choose the right high bay wattage? When consulting an LED wattage replacement guide, procurement teams must stop looking at raw wattage and start calculating usable lumens. First, determine the existing lumen output of your current high bay fixtures, factoring in the 30-40% lumen depreciation typical of older HID lamps. Divide those required lumens by the efficacy of the new LED fixture. For instance, if you require 22,000 usable lumens and select a fixture with a 150 lm/W efficacy, you will need approximately 150W of high bay wattage. This precise calculation prevents the costly mistake of over-specifying wattage, directly improving your project’s return on investment and ensuring total compliance with IEC 60598 thermal limits.

Q2: Are CE/RoHS certifications strictly necessary for importing industrial lighting? Yes, adhering to CE/RoHS standards is non-negotiable for commercial contractors importing lighting into most international B2B markets, including the Middle East, Africa, and South America. CE certification legally proves the fixture complies with stringent European health, electrical safety, and environmental protection legislations. RoHS certification guarantees the internal electronic components are completely free from hazardous substances, which is critical for eco-friendly municipal procurement mandates. Any reliable LED wattage replacement guide will mandate these certifications. Installing non-compliant fixtures can result in severe customs impoundments, failed commercial building inspections, and increased liability for project developers. Always request official laboratory test reports from the manufacturer before finalizing bulk orders.

Q3: What is the impact of an IP65 rating on warehouse lighting longevity? An IP65 rating is a critical mechanical specification outlined in our LED wattage replacement guide for heavy industrial applications. The "6" indicates total protection against solid dust ingress, which is absolutely vital in manufacturing facilities, woodworking shops, or geographic regions prone to seasonal sandstorms. The "5" signifies robust protection against low-pressure water jets from any direction, allowing for routine facility wash-downs without short-circuiting the fixture's internal LED driver. Without a certified IP65 rating, airborne particulates will eventually coat the internal LED diode chips, causing severe thermal retention, accelerated lumen depreciation, and premature hardware failure. Specifying IP65-rated fixtures directly lowers your total cost of ownership by eliminating environmentally caused maintenance cycles.

Q4: How does a 150 lm/W efficacy affect my ROI and payback period? Luminous efficacy is the primary financial driver of ROI in commercial lighting retrofits. A fixture boasting a 150 lm/W efficacy requires significantly less electrical power to achieve the required surface foot-candles compared to standard, older generation 100 lm/W fixtures. By strictly following our LED wattage replacement guide, you maximize the energy savings per individual fixture. For example, replacing a 400W HID system with a 150W (150 lm/W) LED reduces energy use by exactly 67%. When this mathematical logic is applied across hundreds of warehouse fixtures, the massive reduction in kilowatt-hours directly translates to lower monthly utility bills, consistently reducing the capital payback period to under 18 months for large-scale B2B lighting contractors.

Executing Your Lighting Upgrade Using This LED Wattage Replacement Guide

Transitioning from legacy HID, HPS, or metal halide systems to advanced solid-state lighting requires precise engineering data and careful supply chain planning. By systematically utilizing this LED wattage replacement guide, B2B buyers, electrical wholesalers, and project developers can confidently specify warehouse fixtures that guarantee a rapid return on investment. Prioritizing core technical metrics like high efficacy, robust IP ratings, and rigorous international safety certifications ensures long-term operational reliability in the most demanding industrial environments.
